PE42612 Datasheet, Switch, Peregrine Semiconductor

PE42612 Features

  • Switch
  • Two pin CMOS logic control inputs
  • Supports 1.8 V Control Logic
  • Low TX insertion loss: 0.55 dB at TX1 RX1

PDF File Details

Part number:

PE42612

Manufacturer:

Peregrine Semiconductor

File Size:

185.46kb

Download:

📄 Datasheet

Description:

Sp4t switch. The PE42612 SP4T RF UltraCMOS™ Flip Chip Switch is designed specifically to address the needs of the antenna switch module market for

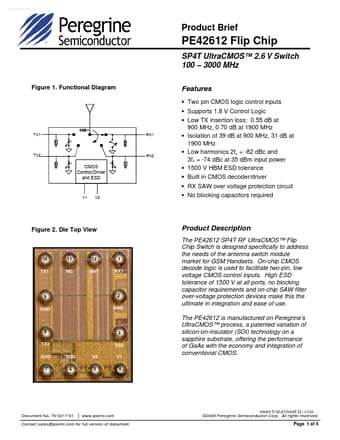

Datasheet Preview: PE42612 📥 Download PDF (185.46kb)
Page 2 of PE42612 Page 3 of PE42612

PE42612 Application

  • Applications intended to support or sustain life, or in any application in which the failure of the Peregrine product could create a situation in wh

TAGS

PE42612
SP4T
Switch
Peregrine Semiconductor
