PE43705 Datasheet - Peregrine Semiconductor

RF Digital Step Attenuator

PE43705 Features

* safe attenuation state transitions and is offered in a 32-lead 5x5 mm QFN package. In addition, no external blocking capacitors are required if 0V DC is present on the RF ports. The PE43705 is manufactured on Peregrine’s UltraCMOS® process, a patented variation of silicon-on-insulator (SOI) technolo

PE43705 General Description

The PE43705 is a 50Ω, HaRP™ technology-enhanced, 7-bit RF Digital Step Attenuator (DSA) designed for use in 3G/4G wireless infrastructure and other high performance RF applications. This DSA is a pin-compatible upgraded version of PE43703 with higher power handling and a wider frequency, control vol.

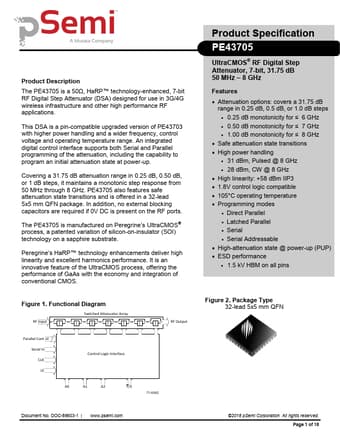

PE43705 Datasheet (902.78 KB)

PE43705 Datasheet Preview — Preview of PE43705 PDF

Datasheet Details

Part number:

PE43705

Manufacturer:

Peregrine Semiconductor

File Size:

902.78 KB

Description:

Rf digital step attenuator.
