PE43702 - RF Digital Attenuator 7-bit

Product Overview

Peregrine Semiconductor

Part number	PE43702
Manufacturer	Peregrine Semiconductor
File Size	503.00 KB
Description	RF Digital Attenuator 7-bit
Datasheet	PE43702 Datasheet

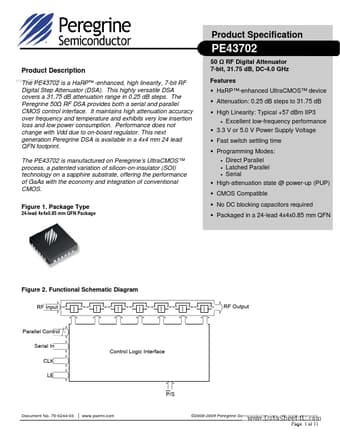

Additional preview pages of the PE43702 datasheet.

www.datasheet4u.com 50 Ω RF Digital Attenuator 7-bit, 31.75 dB, DC-4.0 GHz

HaRP™-enhanced UltraCMOS™ device.
Attenuation: 0.25 dB steps to 31.75 dB.
High Linearity: Typical +57 dBm IIP3 The PE43702 is a HaRP™-enhanced, high linearity, 7-bit RF Digital Step Attenuator (DSA). This highly versatile DSA covers a 31.75 dB attenuation range in 0.25 dB steps. The Peregrine 50Ω RF DSA provides both a serial and parallel CMOS control interface. It maintains high attenuation accuracy over frequency and temperature and exhibits very low insertion loss.
