PE43713 RF Digital Step Attenuator

PE43713 Description

PE43713 Product Specification UltraCMOS® RF Digital Step Attenuator, 9 kHz *6 GHz .
The PE43713 is a 50Ω, HaRP™ technology-enhanced, 7-bit RF digital step attenuator (DSA) that supports a broad frequency range from 9 kHz to 6 GHz.

PE43713 Features

* Flexible attenuation steps of 0.25 dB, 0.5 dB and 1 dB up to 31.75 dB
* Glitch-less attenuation state transitions
* Monotonicity: 0.25 dB up to 4 GHz, 0.5 dB up to 5 GHz and 1 dB up to 6 GHz
* Extended +105 °C operating temperature
* Parallel and Serial prog

PE43713 Applications

* Test and measurement (T&M)

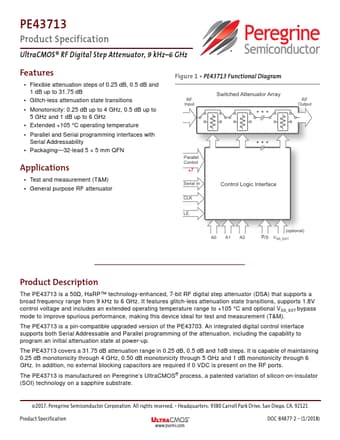

* General purpose RF attenuator Figure 1

📥 Download Datasheet

Preview of PE43713 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PE43713
Manufacturer
Peregrine Semiconductor
File Size
1.91 MB
Datasheet
PE43713-PeregrineSemiconductor.pdf
Description
RF Digital Step Attenuator
