74HCT7080

16-bit even/odd parity generator/checker

74HCT7080 Features

* Word-length easily expanded by cascading

* Generates either even or odd parity for 16-data bits

* Output capability: standard

* ICC category: MSI GENERAL DESCRIPTION The 74HC/HCT7080 are high-speed Si-gate CMOS devices. They are specified in compliance with JEDEC st

74HCT7080 General Description

The 74HC/HCT7080 are high-speed Si-gate CMOS devices. They are specified in compliance with JEDEC standard no. 7A. QUICK REFERENCE DATA GND = 0 V; Tamb = 25 °C; tr = tf = 6 ns 74HC/HCT7080 The 74HC/HCT7080 are 16-bit parity generators or checkers commonly used to detect errors in high-speed data tr.

74HCT7080 Datasheet (52.56 KB)

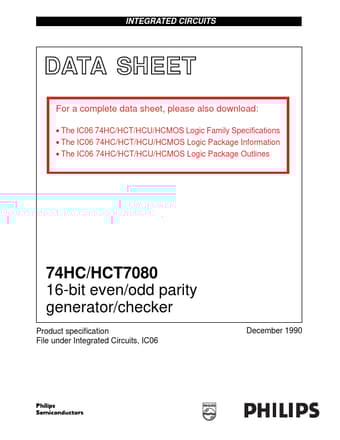

Preview of 74HCT7080 PDF
