74HCT74 Datasheet, Flip-flop, nexperia

74HCT74 Features

  • Flip-flop
  • Wide supply voltage range from 2.0 to 6.0 V
  • CMOS low power dissipation
  • High noise immunity
  • Input levels:
  • For 74HC74: CMOS level

PDF File Details

Part number:

74HCT74

Manufacturer:

nexperia ↗

File Size:

294.36kb

Download:

📄 Datasheet

Description:

Dual d-type flip-flop. The 74HC74 and 74HCT74 are dual positive edge triggered D-type flip-flop. They have individual data (nD), clock (nCP), set (nSD) and

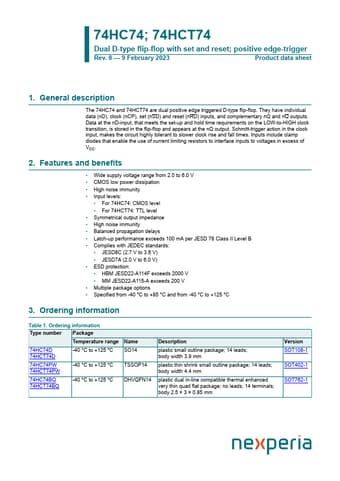

Datasheet Preview: 74HCT74 📥 Download PDF (294.36kb)
