74HCT7245

Octal bus Schmitt-trigger transceiver

74HCT7245 Features

* Octal bidirectional bus interface

* Non-inverting 3-state outputs

* Output capability: bus driver

* ICC category: MSI

* Schmitt-trigger action on all data inputs GENERAL DESCRIPTION The 74HC/HCT7245 are high-speed Si-gate CMOS devices and are pin compatible

74HCT7245 General Description

The 74HC/HCT7245 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT7245 are octal transceivers featuring non-inverting 3-state bus compatible outputs in both send and receive direct.

74HCT7245 Datasheet (42.84 KB)

Preview of 74HCT7245 PDF

Datasheet Details

Part number:

74HCT7245

Manufacturer:

Philips

File Size:

42.84 KB

Description:

Octal bus schmitt-trigger transceiver.

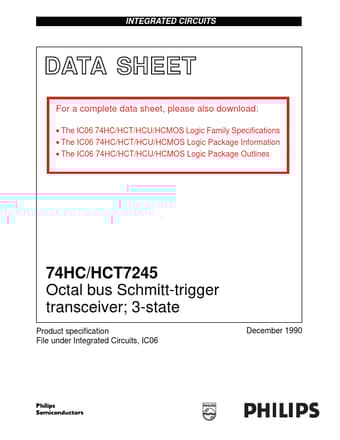

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download:
