74HCT7403

4-Bit x 64-word FIFO register

74HCT7403 Features

* Synchronous or asynchronous operation

* 3-state outputs

* 30 MHz (typical) shift-in and shift-out rates

* Readily expandable in word and bit dimensions

* Pinning arranged for easy board layout: input pins directly opposite output pins

* Output capabi

74HCT7403 General Description

The 74HC/HCT7403 are high-speed Si-gate CMOS devices. They are specified in compliance with JEDEC standard no.7A. The “7403” is an expandable, First-In First-Out (FIFO) memory organized as 64 words by 4 bits. A guaranteed 15 MHz data-rate makes it ideal for high-speed applications. A higher data-rat.

74HCT7403 Datasheet (163.83 KB)

Preview of 74HCT7403 PDF

Datasheet Details

Part number:

74HCT7403

Manufacturer:

Philips

File Size:

163.83 KB

Description:

4-bit x 64-word fifo register.

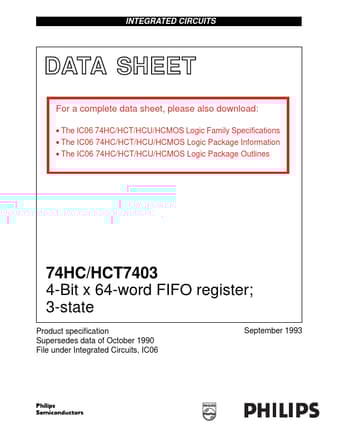

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download:
