74HCT7273

Octal D-type flip-flop

74HCT7273 Features

* ESD protection: HBM EIA/JESD22-A114-A Exceeds 2000 V MM EIA/JESD22-A115-A Exceeds 200 V

* Ideal buffer for MOS microprocessor or memory

* Eight positive edge-triggered D-type flip-flops

* Common clock and master reset

* Output capability: standard (open drai

74HCT7273 General Description

74HCT7273 The 74HCT7273 is a high-speed SI-gate CMOS device and is pin compatible with Low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no 7A. The 74HCT7273 has eight edge-triggered D-type flip-flops with individual D inputs and Q outputs. The common Clock (CP) and.

74HCT7273 Datasheet (91.87 KB)

Preview of 74HCT7273 PDF

Datasheet Details

Part number:

74HCT7273

Manufacturer:

Philips

File Size:

91.87 KB

Description:

Octal d-type flip-flop.

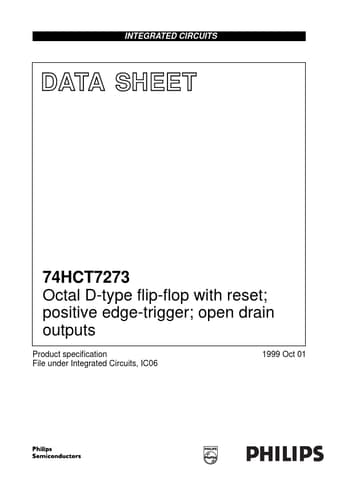

INTEGRATED CIRCUITS DATA SHEET 74HCT7273 Octal D-type flip-flop with reset; positive edge-trigger; open drain outputs Product specification File unde.
