SA620

Low voltage LNA / mixer and VCO - 1GHz

SA620 Features

* Low current consumption: 10.4mA nominal, 7.2mA with thru-mode activated PIN CONFIGURATION DK Package LNA ENABLE 1 LNA GND 2 LNA IN 3 LNA GND 4 LNA GND 5 20 VCC 19 LNA GND 18 LNA OUT 17 LNA BIAS 16 MIXER IN 15 MIXER GND 14 MIXER BYPASS 13 MIXER OUT 12 OSC GND 11 VCO OUT

* Outstan

SA620 General Description

The SA620 is a combined RF amplifier, VCO with tracking bandpass filter and mixer designed for high-performance low-power communication systems from 800-1200MHz. The low-noise preamplifier has a 1.6dB noise figure at 900MHz with 11.5dB gain and an IP3 intercept of -3dBm at the input. The gain is sta.

SA620 Datasheet (331.97 KB)

Preview of SA620 PDF

Datasheet Details

Part number:

SA620

Manufacturer:

Philips

File Size:

331.97 KB

Description:

Low voltage lna / mixer and vco - 1ghz.

📁 Related Datasheet

SA621 1GHz - Low voltage LNA / mixer and VCO (Philips)

SA624 High performance low power FM IF system with high-speed RSSI (Philips)

SA625 High performance low power mixer FM IF system with high-speed RSSI (Philips)

SA626 Low voltage high performance mixer FM IF system with high-speed RSSI (Philips)

SA627 High performance low power FM IF system with high-speed RSSI (Philips)

SA6 SURFACE MOUNT SILICON RECTIFIER (Rectron)

SA6.0 AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)

SA6.0 Transient Voltage Suppression (TVS) Diodes (Crydom)

SA6.0 Transient Voltage Suppressors (Microsemi)

SA6.0 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (Pan Jit International)

TAGS

SA620 Low voltage LNA mixer and VCO 1GHz Philips

Image Gallery

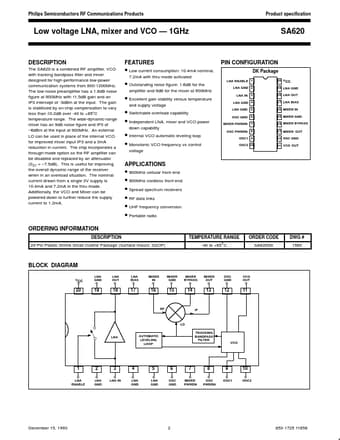

SA620 Datasheet Preview Page 2 SA620 Datasheet Preview Page 3
