SA621

1GHz - Low voltage LNA / mixer and VCO

SA621 Features

* Low current consumption

* Outstanding gain and noise figure

* Excellent gain stability versus temperature and supply voltage

* LNA, mixer and VCO power down capability

* Monotonic VCO frequency vs control voltage SR01429 Figure 1. Pin Configuration APPLI

SA621 General Description

The SA621 is a combined low-noise amplifier, mixer and VCO designed for high-performance low-power communication systems from 800-1000MHz. The low-noise preamplifier has a 1.7dB noise figure at 881MHz with 15dB gain and an IP3 intercept of -7dBm at the input. The gain is stabilized by on-chip compen.

SA621 Datasheet (118.97 KB)

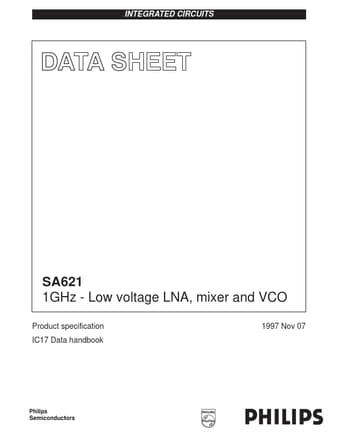

Preview of SA621 PDF

Datasheet Details

Part number:

SA621

Manufacturer:

Philips

File Size:

118.97 KB

Description:

1ghz - low voltage lna / mixer and vco.
INTEGRATED CIRCUITS SA621 1GHz - Low voltage LNA, mixer and VCO Product specification IC17 Data handbook 1997 Nov 07 Philips Semiconductors Philips.
