SA624

High performance low power FM IF system with high-speed RSSI

SA624 Features

* higher IF bandwidth (25MHz) and temperature compensated RSSI and limiters permitting higher performance application compared with the SA604. The SA624 is available in 16-lead SO (surface-mounted miniature) package. PIN CONFIGURATION D Package IF AMP DECOUPLING 1 GND 2 MUTE INPUT 3 VCC 4 16 IF AMP I

SA624 General Description

The SA624 is pin-to-pin compatible with the SA604A, but has faster RSSI rise and fall time. The SA624 is an improved monolithic low-power FM IF system incorporating two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator, and voltag.

SA624 Datasheet (161.90 KB)

Preview of SA624 PDF

Datasheet Details

Part number:

SA624

Manufacturer:

Philips

File Size:

161.90 KB

Description:

High performance low power fm if system with high-speed rssi.

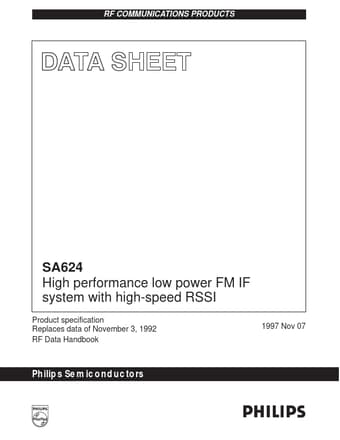

RF COMMUNICATIONS PRODUCTS SA624 High performance low power FM IF system with high-speed RSSI Product specification Replaces data of November 3, 1992.
