SA625

High performance low power mixer FM IF system with high-speed RSSI

SA625 Features

* MUTED AUDIO OUT 8 UNMUTED AUDIO OUT 9 QUADRATURE IN 10

* Fast RSSI rise and fall times

* Low power consumption: 5.8mA typical at 6V

* Mixer input to >500MHz

* Mixer conversion power gain of 13dB at 45MHz

* Mixer noise figure of 4.6dB at 45MHz

* XTAL

SA625 General Description

The SA625 is pin-to-pin compatible with the SA605, but has faster RSSI rise and fall times. The SA625 is a high performance monolithic low-power FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal str.

SA625 Datasheet (157.96 KB)

Preview of SA625 PDF

Datasheet Details

Part number:

SA625

Manufacturer:

Philips

File Size:

157.96 KB

Description:

High performance low power mixer fm if system with high-speed rssi.

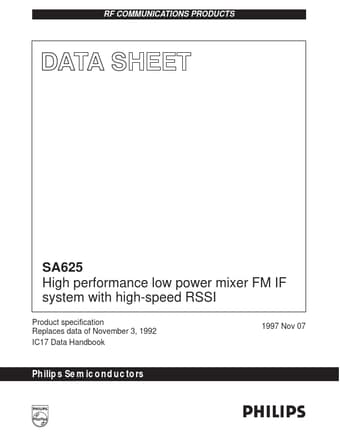

RF COMMUNICATIONS PRODUCTS SA625 High performance low power mixer FM IF system with high-speed RSSI Product specification Replaces data of November 3.
