SA627

High performance low power FM IF system with high-speed RSSI

SA627 Features

* Fast RSSI rise and fall times

* Low power consumption: 5.8mA typical at 6V

* Mixer input to >500MHz

* Mixer conversion power gain of 13dB at 45MHz

* Mixer noise figure of 4.6dB at 45MHz

* XTAL oscillator effective to 150MHz (L.C. oscillator to 1GHz

SA627 General Description

The SA627 has faster RSSI rise and fall times. The SA627 is a high performance monolithic low-power FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator (RSSI) with fast rise and fal.

SA627 Datasheet (127.44 KB)

Preview of SA627 PDF

Datasheet Details

Part number:

SA627

Manufacturer:

Philips

File Size:

127.44 KB

Description:

High performance low power fm if system with high-speed rssi.

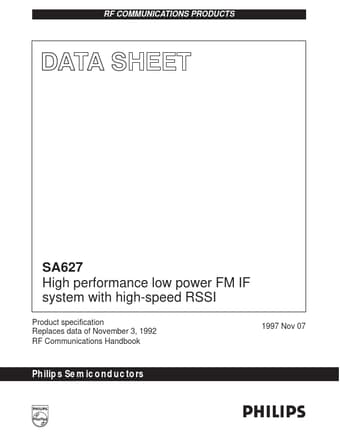

RF COMMUNICATIONS PRODUCTS SA627 High performance low power FM IF system with high-speed RSSI Product specification Replaces data of November 3, 1992.
