PT6654, PT6650 Datasheet - Power Trends

PT6654 5AMP 24V INPUT INTEGRATED SWITCHING REGULATOR

For assistance or to order, call (800) 531-5782 PT6650 Series 5 AMP 24V INPUT INTEGRATED SWITCHING REGULATOR Revised 2/5/99 Application Notes Mechanical Outline Product Selector Guide Single Device: 5A Output Input Voltage Range: 9V to 28V Adjustable Output Voltage 80% Efficiency Remote Sense Capability Standby Function The PT6650 series is a new addition to Power Trends’ line of 24V bus Integrated Switching Regulators (ISRs). Des.

PT6650-PowerTrends.pdf

This datasheet PDF includes multiple part numbers: PT6654, PT6650. Please refer to the document for exact specifications by model.

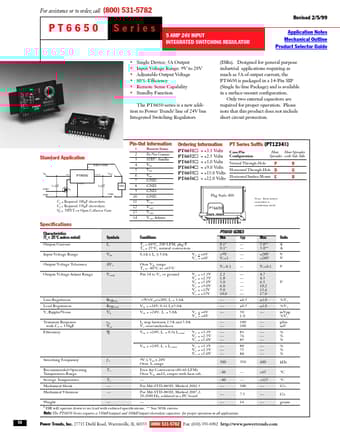

PT6654 Datasheet Preview Page 2 PT6654 Datasheet Preview Page 3

Datasheet Details

Part number:

PT6654, PT6650

Manufacturer:

Power Trends

File Size:

226.55 KB

Description:

5amp 24v input integrated switching regulator.

Note:

This datasheet PDF includes multiple part numbers: PT6654, PT6650.
Please refer to the document for exact specifications by model.
