ME700802

Three-Phase Diode Bridge Modules (20 Amperes/800 Volts)

ME700802 Features

* M Isolated Mounting M Planar Chips M UL Recognized Outline Drawing Dimension A B C D E F G H J K L M N Inches 3.150 2.677±0.012 1.220 1.181 1.142 0.866 0.728 0.512 0.492 R 0.472 0.118 0.079 Millimeters 80 68±0.3 31 30 29 22 18.5 13 R12.5 12 Applications: M Inverters M DC Power Supplies M AC Motor

ME700802 General Description

Powerex Three-Phase Diode Bridge Modules are designed for use in three phase bridge applications. The modules are isolated consisting of six rectifier diodes. These ME70 Modules have been tested and recognized by Underwriters Laboratories (QQQX2 Power Switching Semiconductors). ME700802 Three-Phase.

ME700802 Datasheet (69.45 KB)

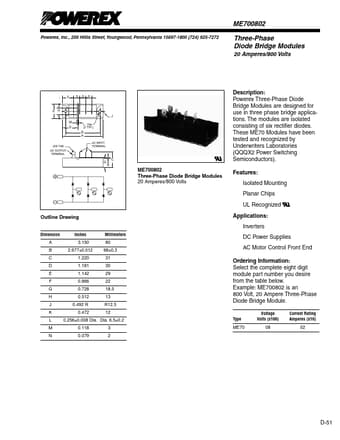

Preview of ME700802 PDF

Datasheet Details

Part number:

ME700802

Manufacturer:

Powerex Powers

File Size:

69.45 KB

Description:

Three-phase diode bridge modules (20 amperes/800 volts).
ME700802 Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Three-Phase Diode Bridge Modules 20 Amperes/800 Volts F.
