Three-Phase Diode Bridge Modules (30 Amperes/1200-1600 Volts)

ME701203 Features

* M Isolated Mounting M Planar Chips M UL Recognized Outline Drawing Dimension A B C D E F G H J K L M N Inches 3.150 2.677±0.012 1.220 1.181 1.142 0.866 0.728 0.512 0.492 R 0.472 0.118 0.079 Millimeters 80 68±0.3 31 30 29 22 18.5 13 R12.5 12 Applications: M Inverters M DC Power Supplies M AC Motor

ME701203 General Description

Powerex Three-Phase Diode Bridge Modules are designed for use in three-phase bridge application. The modules are isolated consisting of six rectifier diodes. These ME70 Modules have been tested and recognized by Underwriters Laboratories (QQQX2 Power Switching Semiconductors). ME701203, ME701603 Th.

ME701203 Datasheet (76.11 KB)

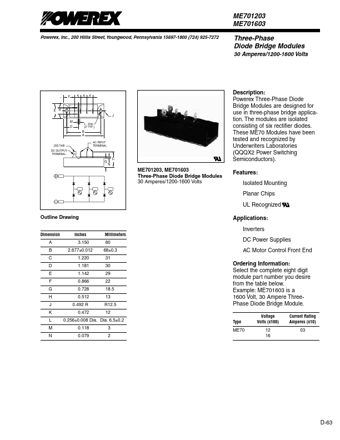

Preview of ME701203 PDF

Datasheet Details

Part number:

ME701203

Manufacturer:

Powerex Powers

File Size:

76.11 KB

Description:

Three-phase diode bridge modules (30 amperes/1200-1600 volts).
ME701203 ME701603 Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Three-Phase Diode Bridge Modules 30 Amperes/12.
