ME700803 Three-Phase Diode Bridge Modules (30 Amperes/800 Volts)

Powerex Three-Phase Diode Bridge Modules are designed for use in three phase bridge applications. The modules are isolated consisting of six rectifier diodes. These ME70 Modules have been tested and recognized by Underwriters Laboratories (QQQX2 Power Switching Semiconductors). ME700803 Three-Phase.

ME700803 Features

* M Isolated Mounting M Planar Chips M UL Recognized Outline Drawing Dimension A B C D E F G H J K L M N Inches 3.150 2.677±0.012 1.220 1.181 1.142 0.866 0.728 0.512 0.492 R 0.472 0.118 0.079 Millimeters 80 68±0.3 31 30 29 22 18.5 13 R12.5 12 Applications: M Inverters M DC Power Supplies M AC Motor

ME700803_PowerexPowerSemiconductors.pdf

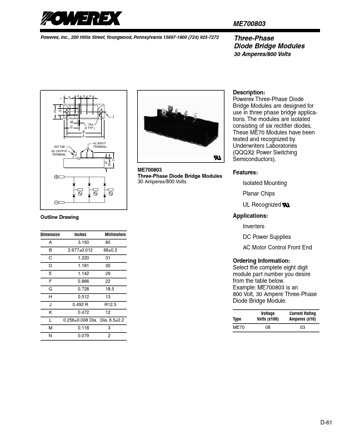

ME700803 Datasheet Preview — Preview of ME700803 PDF

Datasheet Details

Part number:

ME700803

Manufacturer:

Powerex Powers

File Size:

69.30 KB

Description:

Three-phase diode bridge modules (30 amperes/800 volts).
