QPB0220

Wideband GaN SSPA

QPB0220 Features

* Frequency Range: 2 

*  18 GHz

* Saturated Output Power: 53.5 dBm

* Solid State MMIC Reliability

* Multi-Element Redundancy

* Instant On (no warm-up) +VDD POWER SUPPLY GND VD VG Bias Card RF IN Amplifier GND Performance is typical across frequency.

QPB0220 General Description

An excellent alternative to traveling wave tube amplifiers, Qorvo’s Spatium™ QPB0220 is a solid state, spatialcombining amplifier with an operating range of 2

*18 GHz while achieving 53.5 dBm (225 Watts) of instantaneous saturated power. With its maximum performance in output power, gain, eff.

QPB0220 Datasheet (623.55 KB)

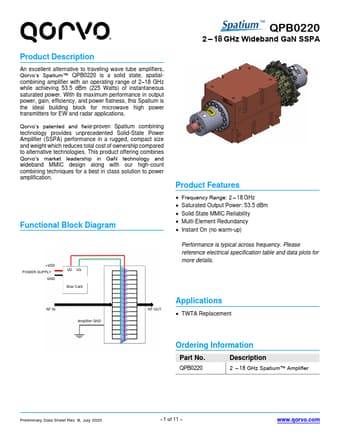

Preview of QPB0220 PDF

Datasheet Details

Part number:

QPB0220

Manufacturer:

Qorvo

File Size:

623.55 KB

Description:

Wideband gan sspa.
