QPB2731N

27.5 - 31GHz Ka-Band GaN Amplifier

QPB2731N Features

* Frequency Range: 27.5 

*  31 GHz

* Saturated Output Power: > 51.5 dBm (PIN = 39 dBm)

* Linear Power (71°C): > 49 dBm

* Solid State MMIC Reliability

* Multi-Element Redundancy

* Instant On (no warm-up)

* Integrated Bias Card Performance

QPB2731N General Description

An excellent alternative to traveling wave tube amplifiers, Qorvo’s Spatium™ QPB2731N is a solid state, spatialcombining amplifier with an operating range of 27.5

*31 GHz while achieving greater than 49 dBm of instantaneous linear power. With its maximum performance in output power, gain, pow.

QPB2731N Datasheet (548.46 KB)

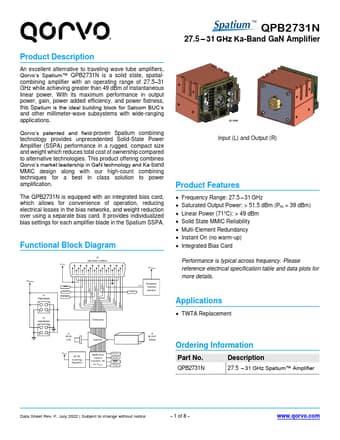

Preview of QPB2731N PDF

Datasheet Details

Part number:

QPB2731N

Manufacturer:

qorvo

File Size:

548.46 KB

Description:

27.5 - 31ghz ka-band gan amplifier.
