QPB0206N

2 - 6GHz GaN Amplifier

QPB0206N Features

* Frequency Range: 2 

*  6 GHz

* Saturated Output Power: 54.3 dBm (PIN = 36 dBm)

* Large Signal Gain: 18.3 dB (PIN = 36 dBm)

* Solid State MMIC Reliability

* Multi-Element Redundancy

* Instant On (no warm-up)

* Integrated Bias Card Perfor

QPB0206N General Description

An excellent alternative to traveling wave tube amplifiers, Qorvo’s Spatium™ QPB0206N is a solid state, spatial combining amplifier with an operating range of 2

*6 GHz. With its maximum performance in output power, gain, power added efficiency, and frequency range, this Spatium is the ideal b.

QPB0206N Datasheet (914.51 KB)

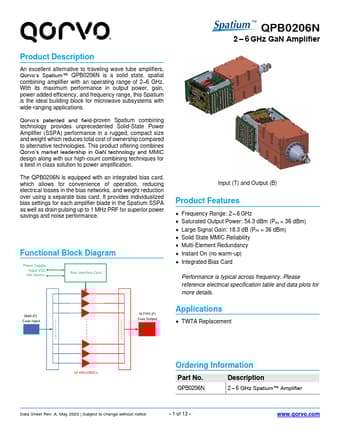

Preview of QPB0206N PDF

Datasheet Details

Part number:

QPB0206N

Manufacturer:

qorvo

File Size:

914.51 KB

Description:

2 - 6ghz gan amplifier.
