QPB0220N Datasheet, Amplifier, qorvo

QPB0220N Features

  • Amplifier
  • Frequency Range: 2 
      – 18 GHz
  • Saturated Output Power: 53.4 dBm (PIN = 43 dBm)
  • Large Signal Gain: 10.4 dB (PIN = 43 dBm)
  • Solid State

PDF File Details

Part number:

QPB0220N

Manufacturer:

qorvo

File Size:

758.17kb

Download:

📄 Datasheet

Description:

2-18ghz wideband gan amplifier. An excellent alternative to traveling wave tube amplifiers, Qorvo’s Spatium™ QPB0220N is a solid state, spatial combining amplifier w

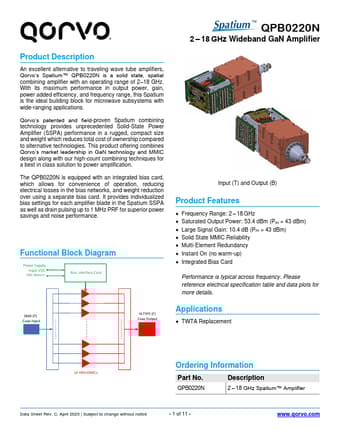

Datasheet Preview: QPB0220N 📥 Download PDF (758.17kb)
Page 2 of QPB0220N Page 3 of QPB0220N

QPB0220N Application

  • Applications Qorvo’s patented and field-proven Spatium combining technology provides unprecedented Solid-State Power Amplifier (SSPA) performance i
