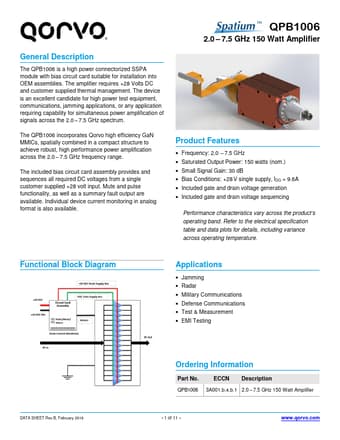

QPB1006 Datasheet, Amplifier, qorvo

QPB1006 Features

• Amplifier
• Frequency: 2.0  
    – 7.5 GHz
• Saturated Output Power: 150 watts (nom.)
• Small Signal Gain: 30 dB
• Bias Conditions: +28 V single supply,

PDF File Details

Part number:

QPB1006

Manufacturer:

qorvo

File Size:

1.87MB

Download:

📄 Datasheet

Description:

150watt amplifier. The QPB1006 is a high power connectorized SSPA module with bias circuit card suitable for installation into OEM assemblies. The ampli

QPB1006 Application

• Applications or any application requiring capability for simultaneous power amplification of signals across the 2.0 
    – 7.5 GHz spect
