RF3394

GENERAL PURPOSE AMPLIFIER

RF3394 Features

* DC to >6000MHz Operation

* Internally Matched Input and Output

* 20dB Small Signal Gain GND GND GND

* +32dBm Output IP3

* +18dBm Output Power 9 NC 8 RF OUT 7 NC 12 NC 1 RF IN 2 NC 3 4 GND 11 10

* Footprint Compatible with Micro-X 5 GND 6 GN

RF3394 General Description

The RF3394 is a general purpose, low-cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50 Ω gain block. Applications include IF and RF amplification in wireless voice.

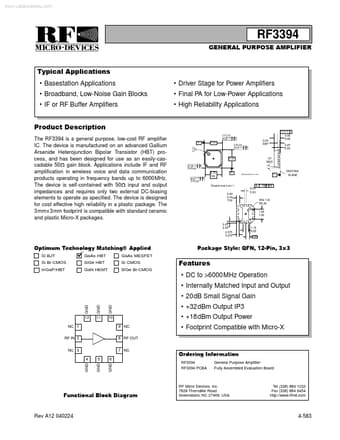

RF3394 Datasheet (185.91 KB)

Preview of RF3394 PDF

Datasheet Details

Part number:

RF3394

Manufacturer:

RF Micro Devices

File Size:

185.91 KB

Description:

General purpose amplifier.
www.DataSheet4U.com RF3394 0 Typical Applications

* Basestation Applications

* Broadband, Low-Noise Gain Blocks

* IF or RF Bu.
