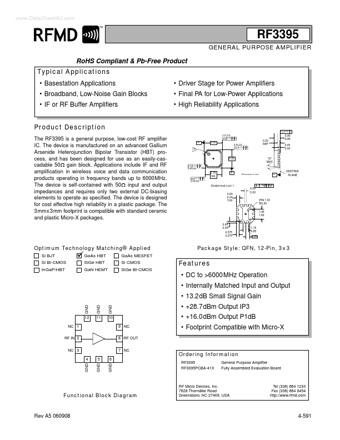

RF3395 Datasheet - RF Micro Devices

GENERAL PURPOSE AMPLIFIER

RF3395 Features

* DC to >6000MHz Operation

* Internally Matched Input and Output

* 13.2dB Small Signal Gain GND GND GND

* +28.7dBm Output IP3

* +16.0dBm Output P1dB 9 NC 8 RF OUT 7 NC 12 NC 1 RF IN 2 NC 3 4 GND 11 10

* Footprint Compatible with Micro-X 5 GND

RF3395 General Description

The RF3395 is a general purpose, low-cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50 Ω gain block. Applications include IF and RF amplification in wireless voice.

RF3395 Datasheet (159.99 KB)

RF3395 Datasheet Preview — Preview of RF3395 PDF

Datasheet Details

Part number:

RF3395

Manufacturer:

RF Micro Devices

File Size:

159.99 KB

Description:

General purpose amplifier.
www.DataSheet4U.com RF3395 0 RoHS Compliant & Pb-Free Product Typical Applications Basestation Applications Broadband, Low-Noise .
