RF3396 Datasheet, Amplifier, RF Micro Devices

RF3396 Features

  • Amplifier
  • DC to >6000MHz Operation
  • Internally Matched Input and Output
  • 22dB Small Signal Gain
  • +2.0dB Noise Figure
  • +11.5dBm Output P1dB

PDF File Details

Part number:

RF3396

Manufacturer:

RF Micro Devices

File Size:

269.05kb

Download:

📄 Datasheet

Description:

General purpose amplifier. The RF3396 is a general purpose, low-cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction

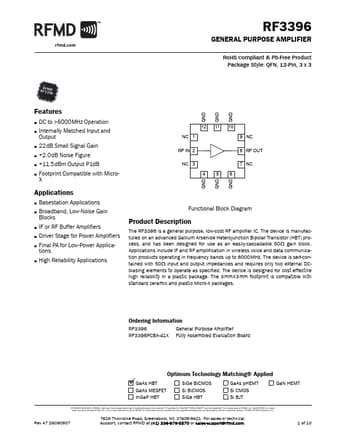

Datasheet Preview: RF3396 📥 Download PDF (269.05kb)
Page 2 of RF3396 Page 3 of RF3396

RF3396 Application

  • Applications
  • Basestation Applications
  • Broadband, Low-Noise Gain Blocks
  • IF or RF Buffer Amplifiers
  • Driver Sta
