SGC2363Z Datasheet, Block, RFMD

SGC2363Z Features

  • Block
  • Single, Fixed 3V Supply
  • No Dropping Resistor Required
  • Patented Self-Bias Circuitry
  • P1dB=10.1dBm at 1950MHz
  • OIP3=23dBm at 1950MHz
  • <

PDF File Details

Part number:

SGC2363Z

Manufacturer:

RFMD

File Size:

304.63kb

Download:

📄 Datasheet

Description:

50mhz to 4000mhz active bias silicon germanium cascadable gain block. RFMD’s SGC2363Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active-bias networ

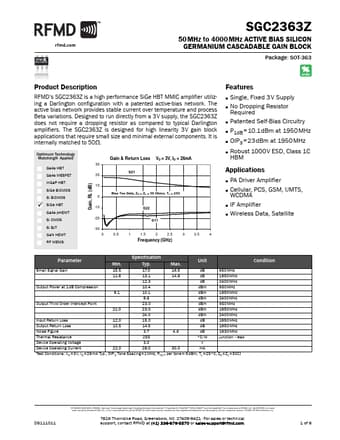

Datasheet Preview: SGC2363Z 📥 Download PDF (304.63kb)
Page 2 of SGC2363Z Page 3 of SGC2363Z

SGC2363Z Application

  • Applications that require small size and minimal external components. It is internally matched to 50. Optimum Technology Matching® Applied GaAs HB
