SGC4486Z Datasheet - RFMD

SGC4486Z 50MHz to 4000MHz ACTIVE BIAS SILICON GERMANIUM CASCADABLE GAIN BLOCK

RFMD’s SGC4486Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V supply, the SGC4486Z does not requi.

SGC4486Z Features

* Single Fixed 3V Supply

* No Dropping Resistor Required

* Patented Self-Bias Circuitry

* P1dB=12.7dBm at 1950MHz

* OIP3=27.5dBm at 1950MHz

* Robust 1000V ESD, Class 1C HBM Applications

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS, WCDMA

* IF Amplifier

* W

SGC4486Z Datasheet (250.52 KB)

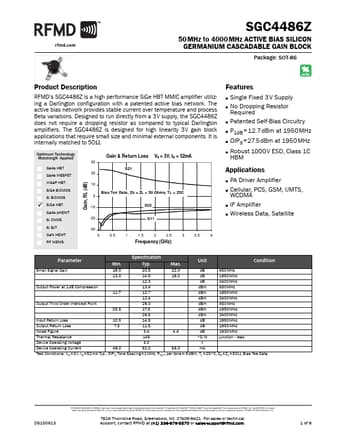

SGC4486Z Datasheet Preview — Preview of SGC4486Z PDF

Datasheet Details

Part number:

SGC4486Z

Manufacturer:

RFMD

File Size:

250.52 KB

Description:

50mhz to 4000mhz active bias silicon germanium cascadable gain block.
