SGC4263Z

50MHz to 4000MHz ACTIVE BIAS SILICON GERMANIUM CASCADABLE GAIN BLOCK

SGC4263Z Features

* Single Fixed 3V Supply

* No Dropping Resistor Required

* Patented Self-Bias Circuitry

* P1dB=15.1dBm at 1950MHz

* OIP3=30dBm at 1950MHz

* Robust 1000V ESD, Class 1C HBM Applications

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS, WCDMA

* IF Amplifier

* Wir

SGC4263Z General Description

RFMD’s SGC4263Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V supply, the SGC4263Z does not requ.

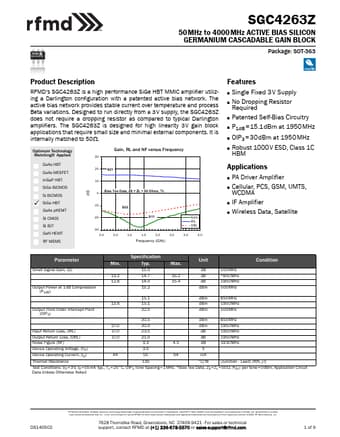

SGC4263Z Datasheet (549.57 KB)

Preview of SGC4263Z PDF

Datasheet Details

Part number:

SGC4263Z

Manufacturer:

RFMD

File Size:

549.57 KB

Description:

50mhz to 4000mhz active bias silicon germanium cascadable gain block.
