SGC2463Z Datasheet - RFMD

SGC2463Z 50MHz to 4000MHz ACTIVE BIAS SILICON GERMANIUM CASCADABLE GAIN BLOCK

RFMD’s SGC2463Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V supply, the SGC2463Z does not requi.

SGC2463Z Features

* Single Fixed 3V Supply

* No Dropping Resistor Required

* Patented Self-Bias Circuitry

* P1dB=10.5dBm at 1950MHz

* OIP3=23.5dBm at 1950MHz

* Robust 1000V ESD, Class 1C HBM Applications

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS, WCDMA

* IF Amplifier

* W

SGC2463Z-RFMD.pdf

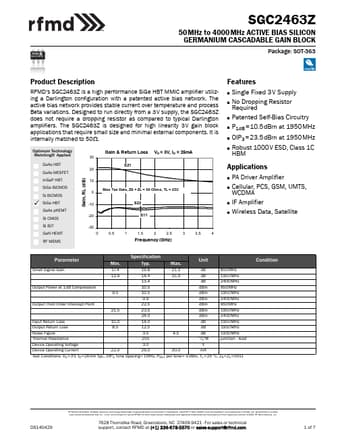

SGC2463Z Datasheet Preview — Preview of SGC2463Z PDF

Datasheet Details

Part number:

SGC2463Z

Manufacturer:

RFMD

File Size:

571.34 KB

Description:

50mhz to 4000mhz active bias silicon germanium cascadable gain block.
