SGC4463Z 50MHz to 4000MHz ACTIVE BIAS SILICON GERMANIUM CASCADABLE GAIN BLOCK

RFMD

Description

SGC4463ZSGC4463Z 50MHz to 4000MHz ACTIVE BIAS SILICON GERMANIUM CASCADABLE GAIN BLOCK Package: SOT-363 Product .
RFMD’s SGC4463Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network.

📥 Download Datasheet

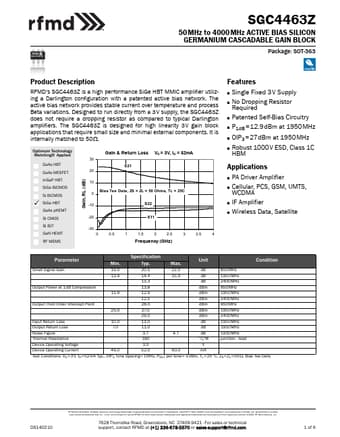

SGC4463Z Datasheet Preview — Preview of SGC4463Z PDF

Datasheet Specifications

Part number: SGC4463Z
Manufacturer: RFMD
File Size: 571.33 KB
Datasheet: SGC4463Z-RFMD.pdf
Description: 50MHz to 4000MHz ACTIVE BIAS SILICON GERMANIUM CASCADABLE GAIN BLOCK

Features

* Single Fixed 3V Supply
* No Dropping Resistor Required
* Patented Self-Bias Circuitry
* P1dB=12.9dBm at 1950MHz
* OIP3=27dBm at 1950MHz

Applications

* that require small size and minimal external components. It is internally matched to 50. Optimum Technology Matching® Applied GaAs HBT GaAs MESFET InGaP HBT SiGe BiCMOS Si BiCMOS
* SiGe HBT GaAs pHEMT Si CMOS Si BJT GaN HEMT RF MEMS Gain, RL (dB) Gain & Return Loss VD = 3V, ID = 52mA 30
