R1131D181B Datasheet, Regulator, RICOH

R1131D181B Features

• Regulator
• Supply Current Typ. 80µA (VOUT < 1.8V) Typ. 60µA (VOUT > = 1.8V)
• Standby Mode Typ. 0.1µA
• Low Dropout VoltageTyp. 0.48V(IOUT=300mA Output Voltage=1.0V Type)

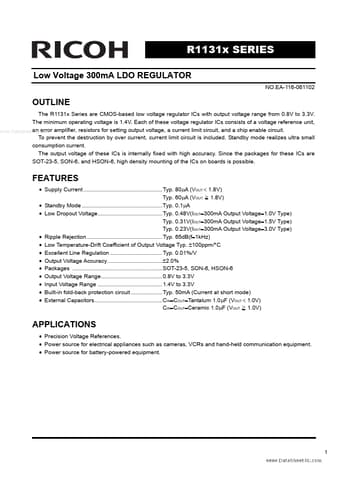

PDF File Details

Part number:

R1131D181B

Manufacturer:

RICOH

File Size:

2.22MB

Download:

📄 Datasheet

Description:

Ldo regulator.

SOT-23-5 Pin No. 1 2 3 4 5 Symbol VDD GND CE or CE

Description Input Pin Ground Pin Chip Enable Pin No Connecti

R1131D181B Application

• Applications
• Precision Voltage References.
• Power source for electrical appliances such as cameras, VCRs and hand-held communicat
