R1131D181D5, R1131D081A Datasheet - RICOH

R1131D181D5 - LDO REGULATOR

* SOT-23-5 Pin No. 1 2 3 4 5 Symbol VDD GND CE or CE * Description Input Pin Ground Pin Chip Enable Pin No Connection Output pin SON-6,HSON-6 Pin No. 1 2 3 4 5 6 Symbol VDD NC VOUT NC GND CE or CE Description Input Pin No Connection Output pin No Connection Ground Pin Chip Enable.

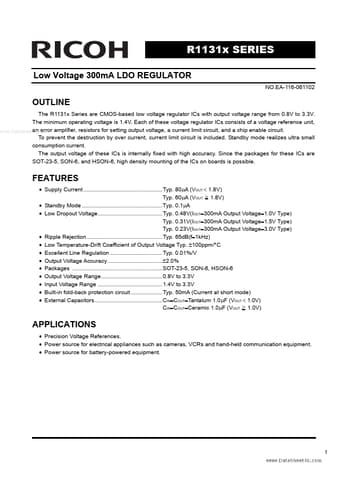

R1131x SERIES Low Voltage 300mA LDO REGULATOR NO.EA-116-061102 OUTLINE The R1131x Series are CMOS-based low voltage regulator ICs with output voltage range from 0.8V to 3.3V. The minimum operating voltage is 1.4V. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors for setting output voltage, a current limit circuit, and a chip enable circuit. www.DataSheet4U.com To prevent the destruction by over current, current limit circuit is included. St.

R1131D181D5 Features

* Supply Current Typ. 80µA (VOUT < 1.8V) Typ. 60µA (VOUT > = 1.8V)

* Standby Mode Typ. 0.1µA

* Low Dropout VoltageTyp. 0.48V(IOUT=300mA Output Voltage=1.0V Type) Typ. 0.31V(IOUT=300mA Output Voltage=1.5V Type) Typ. 0.23V(IOUT=300mA Output Voltage=3.0V Type)

* Ripple R

R1131D081A-RICOH.pdf

This datasheet PDF includes multiple part numbers: R1131D181D5, R1131D081A. Please refer to the document for exact specifications by model.
