RP506K221B, RP506K, 2A PWM/VFM Step-down DC/DC Converter

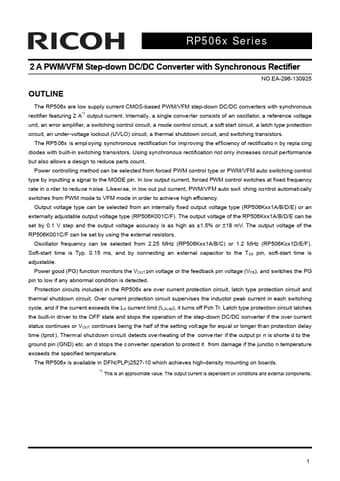

RP506x Series 2 A PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier NO.EA-296-130925 OUTLINE The RP506x are low supply current CMOS-based PWM/VFM step-down DC/DC converters with synchronous rectifier featuring 2 A 1 output current.
Internally, a single converter consists of an oscillator, a reference voltage unit, an error amplifier, a switching control circuit, a mode control circuit, a soft start circuit, a latch type protection circuit, an under-voltage lockout (UVLO) circuit,
RP506K221B Features
* z Supply Current
* Typ. 48 µA (VFM mode, Lx at no load) z St
