BD28412MUV 9W+9W Analog Input Class D Speaker Amplifier

BD28412MUV Description

Datasheet Low Power Consumption Class D Speaker Amplifier series 9 W + 9 W Analog Input Class D Stereo Speaker Amplifier BD28412MUV General Descrip.
BD28412MUV is 9 W + 9 W stereo (or 18 W monaural under parallel connection) class D amplifier which can output power without an external heat sink.

BD28412MUV Features

* Analog Differential Input
* Low Standby Current
* Output Feedback Circuitry Prevents Sound Quality Degradation Caused by Power Supply Voltage Fluctuation, Achieves Low Noise and Low Distortion, Eliminates the Need of Large Electrolytic-Capacitors for Decoupling
* Power Limit Functi

BD28412MUV Applications

* Wireless Speakers, Small Active Speakers, Portable Audio Equipments, etc. Audio Source Other device Figure 1. Typical Application Circuit
* The phase of OUTxx_LC is inverted from the phase of INxx. ex. The phase of OUT1P_LC is inverted from the phase of IN1P. Product structure : Silico

📥 Download Datasheet

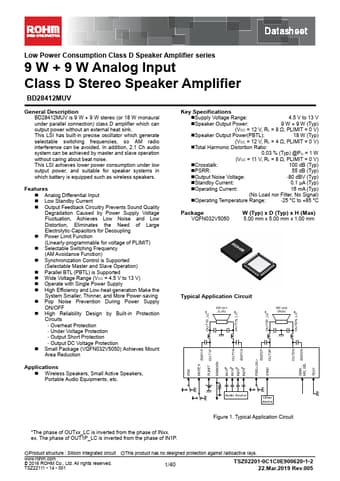

Preview of BD28412MUV PDF
