BD286 PNP Transistor

BD286 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor BD286 .
Collector-Emitter Sustaining Voltage - : VCEO(SUS)= -45V(Min). Collector-Emitter Saturation Voltage- : VCE(sat)= -0. 10.

BD286 Applications

* Designed for medium power linear and switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -45 V VCEO Collector-Emitter Voltage -45 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -4 A ICM Collect

📥 Download Datasheet

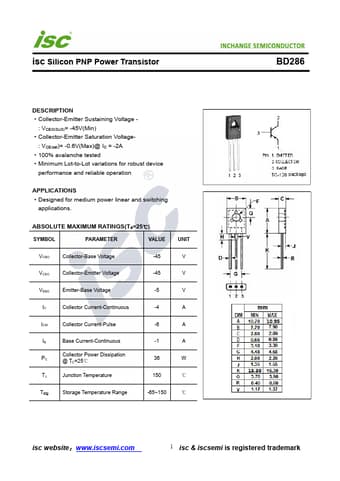

Preview of BD286 PDF
datasheet Preview Page 2

Datasheet Details

Part number
BD286
Manufacturer
INCHANGE
File Size
179.52 KB
Datasheet
BD286-INCHANGE.pdf
Description
PNP Transistor
