BD28623MUV 17W+17W Class D Speaker Amplifier

BD28623MUV Description

Datasheet Middle Power Class-D Speaker Amplifier Series 17W+17W Class D Speaker Amplifier for Digital Input BD28623MUV General .
BD28623MUV is a Class D Speaker Amplifier designed for Flat-panel TVs in particular for space-saving and low-power consumption.

BD28623MUV Features

* 1 Digital Audio Interface I2S format SDATA: 16 / 20 / 24bit LRCLK (fS): 32 kHz/ 44.1kHz / 48kHz BCLK: 64fS (fixed) MCLK: 256fS / 512fS Automatic Identification)
* Low supply current at RESET mode.
* Slew rate controller ; No need snubber circuit (Vcc≤22V)
* Output Feedback Circuitr

BD28623MUV Applications

* - Flat Panel TVs (LCD, Plasma) - Home Audio (Sound Bar) - Amusement Equipment - Electronic Music Equipment - Desktop PC, etc. Digital Audio Source Figure 1. Typical Application Circuit ○Product structure：Silicon monolithic integrated circuit www. rohm. com © 2015 ROHM Co. , Ltd. All rights reserved.

📥 Download Datasheet

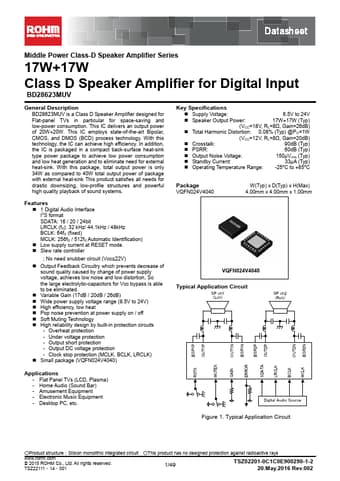

Preview of BD28623MUV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD28623MUV
Manufacturer
ROHM ↗
File Size
2.07 MB
Datasheet
BD28623MUV-ROHM.pdf
Description
17W+17W Class D Speaker Amplifier
