RS204M, RS201M, SILICON BRIDGE RECTIFIER

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes RS201M THRU RS207M .
Rectron Logo Year. code (Y:Last digit of year & A: 2010, B:2011… ) RS20XM Part No. 50V Week.

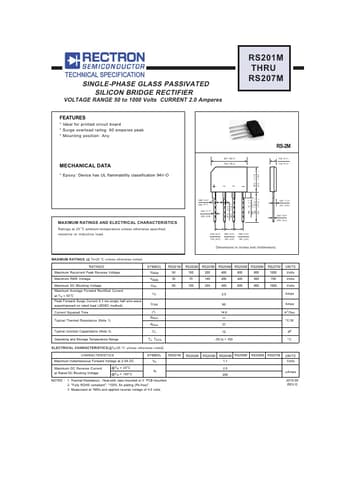

datasheet Preview Page 1 from Datasheet4u.com

RS201M-Rectron.pdf

RS204M Datasheet Preview — This datasheet PDF includes multiple part numbers: RS204M, RS201M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS204M, RS201M

Manufacturer:

Rectron

File Size:

95.79 KB

Description:

SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: RS204M, RS201M.
Please refer to the document for exact specifications by model.

Features

* Ideal for printed circuit board
* Surge overload rating: 60 amperes peak
* Mounting position: Any MECHANICAL DATA Epoxy: Device has UL flammability classification 94V-O .807 (20.5 ) .768 (19.5 ) RS-2M .146 (3.7 ) .130 (3.3 ) .453 ( 11.5 ) .413 ( 10.5 ) .106 (2 .7 ) .091 ( 2.3 ) .

Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o
