HD74LV1GW57A

Configurable Multiple-Function Gate

HD74LV1GW57A Features

* The basic gate function is lined up as Renesas uni logic series.

* Supplied on emboss taping for high-speed automatic mounting.

* Supply voltage range : 1.65 to 5.5 V Operating temperature range :

* 40 to +85°C

* All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5

HD74LV1GW57A General Description

The HD74LV1GW57A has configurable multiple

*function gate in a 6 pin package. The Output state is determined by eight patterns of 3

*bit input. The user can choose the logic functions AND, NAND, NOR, EX

*NOR. Low voltage and high-speed operation is suitable for the battery power.

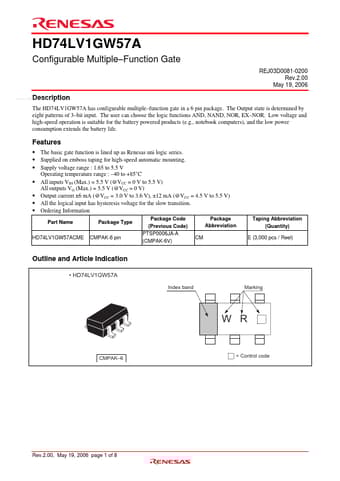

HD74LV1GW57A Datasheet (117.31 KB)

Preview of HD74LV1GW57A PDF

Datasheet Details

Part number:

HD74LV1GW57A

Manufacturer:

Renesas ↗ Technology

File Size:

117.31 KB

Description:

Configurable multiple-function gate.
