HD74LV1GW58A

Configurable Multiple-Function Gate

HD74LV1GW58A Features

* The basic gate function is lined up as Renesas uni logic series. Supplied on emboss taping for high speed automatic mounting. Supply voltage range : 1.65 to 5.5 V Operating temperature range :

* 40 to +

HD74LV1GW58A General Description

The HD74LV1GW58A has configurable multiple

*function gate in a 6 pin package. The Output state is determined by eight patterns of 3

*bit input. The user can choose the logic functions AND, NAND, OR, NOR, EX

*OR. Low voltage and high speed operation is suitable for the battery po.

HD74LV1GW58A Datasheet (117.41 KB)

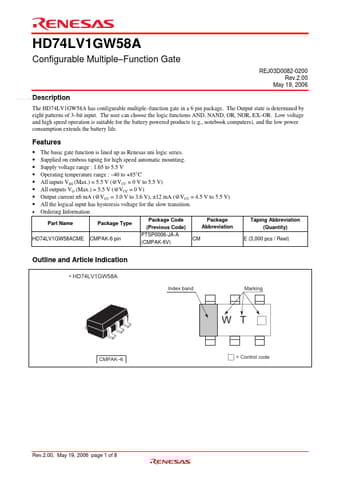

Preview of HD74LV1GW58A PDF

Datasheet Details

Part number:

HD74LV1GW58A

Manufacturer:

Renesas ↗ Technology

File Size:

117.41 KB

Description:

Configurable multiple-function gate.
