R2A20113DD

Critical Conduction Mode PFC Controller

R2A20113DD Datasheet (95.36 KB)

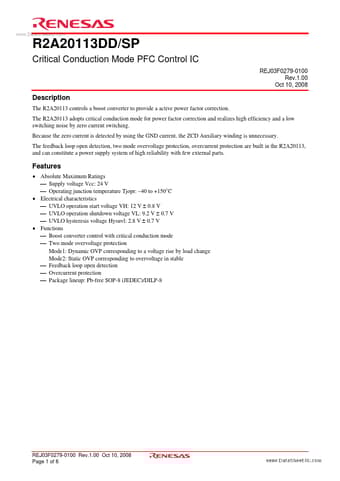

Preview of R2A20113DD PDF

Datasheet Details

Part number:

R2A20113DD

Manufacturer:

Renesas ↗ Technology

File Size:

95.36 KB

Description:

Critical conduction mode pfc controller.

R2A20113DD Features

* Absolute Maximum Ratings  Supply voltage Vcc: 24 V  Operating junction temperature Tjopr:

* 40 to +150°C

* Electrical characteristics  UVLO operation start voltage VH: 12 V ± 0.8 V  UVLO operation shutdown voltage VL: 9.2 V ± 0.7 V  UVLO hysteresis voltage Hysuvl: 2.8 V

R2A20113DD General Description

The R2A20113 controls a boost converter to provide a active power factor correction. The R2A20113 adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching. Because the zero current is detected by using the GND curren.
