2SK4093 - Silicon N Channel MOS FET

Datasheet Summary

Features

  • Capable of 2.5V gate drive.
  • Low drive current.
  • Low on-resistance Outline.

📥 Download Datasheet

Datasheet preview – 2SK4093

Datasheet Details

Part number 2SK4093
Manufacturer Renesas
File Size 58.75 KB
Description Silicon N Channel MOS FET
Datasheet download datasheet 2SK4093 Datasheet
Additional preview pages of the 2SK4093 datasheet.

📁 Similar Datasheet

  • 2SK409 - N-Channel MOSFET (Hitachi Semiconductor)
  • 2SK4091D - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK4091I - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK4092 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • 2SK4094 - N-Channel Silicon MOSFET (Sanyo Semicon Device)
  • 2SK4094 - N-Channel Power MOSFET (ON Semiconductor)
  • 2SK4094 - N-Channel MOSFET (INCHANGE)
  • 2SK4096LS - N-Channel Silicon MOSFET (Sanyo Semicon Device)
  • 2SK4096LS - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK4096LS - N-Channel Power MOSFET (ON Semiconductor)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

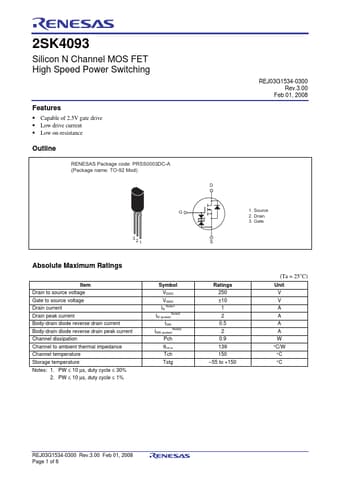

2SK4093 Silicon N Channel MOS FET High Speed Power Switching Features • Capable of 2.5V gate drive • Low drive current • Low on-resistance Outline RENESAS Package code: PRSS0003DC-A (Package name: TO-92 Mod) G 321 Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Body-drain diode reverse drain peak current Channel dissipation Channel to ambient thermal impedance Channel temperature Storage temperature Notes: 1. PW ≤ 10 µs, duty cycle ≤ 30% 2. PW ≤ 10 µs, duty cycle ≤ 1% Symbol VDSS VGSS ID Note1 ID Note2 (pulse) IDR IDR Note2 (pulse) Pch θch-a Tch Tstg REJ03G1534-0300 Rev.3.00 Feb 01, 2008 D 1. Source 2. Drain 3. Gate S Ratings 250 ±10 1 2 0.5 2 0.
