8SLVD2102, Dual 1:2 LVDS Output Fanout Buffer

Dual 1:2, LVDS Output Fanout Buffer 8SLVD2102 Datasheet .
The 8SLVD2102 is a high-performance differential dual 1:2 LVDS fanout buffer.

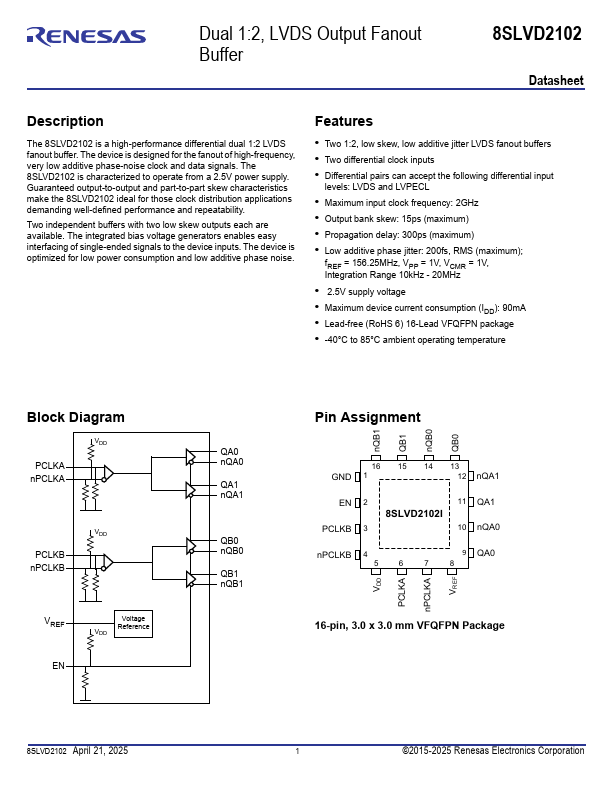

datasheet Preview Page 1 from Datasheet4u.com

8SLVD2102-Renesas.pdf

8SLVD2102 Datasheet Preview — Preview of 8SLVD2102 PDF

Datasheet Details

Part number:

8SLVD2102

Manufacturer:

Renesas ↗

File Size:

752.65 KB

Description:

Dual 1:2 LVDS Output Fanout Buffer

Features

* Two 1:2, low skew, low additive jitter LVDS fanout buffers
* Two differential clock inputs
* Differential pairs can accept the following differential input levels: LVDS and LVPECL
* Maximum input clock frequency: 2GHz
* Output bank skew: 15ps (maximum)

Applications

* demanding well-defined performance and repeatability. Two independent buffers with two low skew outputs each are available. The integrated bias voltage generators enables easy interfacing of single-ended signals to the device inputs. The device is optimized for low power consumption and low additive
