EL5370, EL5170 100MHz Differential Twisted-Pair Driver

Renesas

Description

EL5170, EL5370 100MHz Differential Twisted-Pair Drivers The EL5170 and EL5370 are single and triple high bandwidth amplifiers with a fixed gain of 2..
EL5170 1 2 3 4 5 6 7 8 EL5370 1 2, 6, 10 3, 7, 11 4, 8, 12 14, 17, 23 21 20 15, 18, 24 5, 9, 13, 16, 19, 22 PIN NAME IN+ EN INREF OUTVS+ VSOUT+ IN.

📥 Download Datasheet

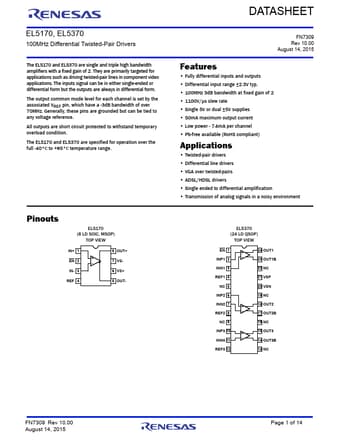

EL5370 Datasheet Preview — This datasheet PDF includes multiple part numbers: EL5370, EL5170. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: EL5370, EL5170
Manufacturer: Renesas ↗
File Size: 714.58 KB
Datasheet: EL5170-Renesas.pdf
Description: 100MHz Differential Twisted-Pair Driver
Note: This datasheet PDF includes multiple part numbers: EL5370, EL5170.
Please refer to the document for exact specifications by model.

Features

* Fully differential inputs and outputs
* Differential input range ±2.3V typ.
* 100MHz 3dB bandwidth at fixed gain of 2
* 1100V/µs slew rate
* Single 5V or dual ±5V supplies
* 50mA maximum output current
* Low power - 7.4mA per channel

Applications

* such as driving twisted-pair lines in component video applications. The inputs signal can be in either single-ended or differential form but the outputs are always in differential form. The output common mode level for each channel is set by the associated VREF pin, which have a -3dB bandwidth of ov
