EL5372, EL5172 - 250MHz Differential Line Receiver

EL5372 Description

EL5172, EL5372 250MHz Differential Line Receivers The EL5172 and EL5372 are single and triple high bandwidth amplifiers designed to extract the diffe.
CONDITIONS MIN TYP MAX UNIT AC PERFORMANCE BW -3dB Bandwidth BW SR tSTL tOVR GBWP ±0.

EL5372 Features

* Differential input range ±2.3V
* 250MHz 3dB bandwidth
* 800V/µs slew rate
* 60mA maximum output current
* Single 5V or dual ±5V supplies
* Low power - 5mA to 6mA per channel

EL5372 Applications

* such as receiving signals from twisted-pair lines or any application where common mode noise injection is likely to occur. The EL5172 and EL5372 are stable for a gain of one and requires two external resistors to set the voltage gain. The output common mode level is set by the reference pin (VREF)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL5372, EL5172. Please refer to the document for exact specifications by model.

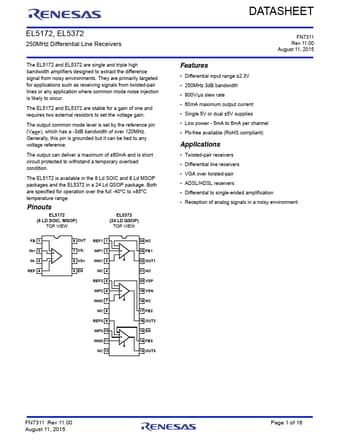

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL5372, EL5172
Manufacturer
Renesas ↗
File Size
770.32 KB
Datasheet
EL5172-Renesas.pdf
Description
250MHz Differential Line Receiver
Note
This datasheet PDF includes multiple part numbers: EL5372, EL5172.
Please refer to the document for exact specifications by model.
