EL5374, EL5174 - 550MHz Differential Twisted-Pair Driver

EL5374 Description

EL5174, EL5374 550MHz Differential Twisted-Pair Drivers The EL5174 and EL5374 are single and triple high bandwidth amplifiers with an output in differ.
EL5174 1 2 3 4 5 6 7 8 EL5374 17, 21, 27 2, 6, 10 3, 7, 11 16, 20, 26 15, 19, 25 24 23 18, 22, 28 1, 5, 9, 13 4, 8, 12 14 PIN NAME FBP IN+ REF FBN.

EL5374 Features

* Fully differential inputs, outputs, and feedback
* Differential input range ±2.3V
* 550MHz 3dB bandwidth
* 1100V/µs slew rate
* Low distortion at 5MHz
* Single 5V or dual ±5V supplies
* 60mA maximum output current
* Low power - 12.5mA

EL5374 Applications

* such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form. On the EL5174 and EL5374, two feedback inputs provide the user with the ability to set the gain of each device (stable at

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL5374, EL5174. Please refer to the document for exact specifications by model.

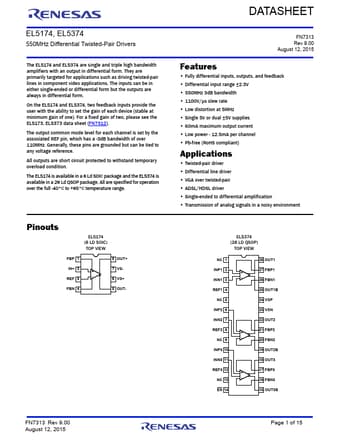

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL5374, EL5174
Manufacturer
Renesas ↗
File Size
740.78 KB
Datasheet
EL5174-Renesas.pdf
Description
550MHz Differential Twisted-Pair Driver
Note
This datasheet PDF includes multiple part numbers: EL5374, EL5174.
Please refer to the document for exact specifications by model.
