EL5375, EL5175 - 550MHz Differential Line Receiver

EL5375 Description

EL5175, EL5375 550MHz Differential Line Receivers The EL5175 and EL5375 are single and triple high bandwidth amplifiers designed to extract the diffe.
CONDITIONS MIN TYP MAX UNIT AC PERFORMANCE BW -3dB Bandwidth BW SR tSTL tOVR GBWP ± 0.

EL5375 Features

* Differential input range ±2.3V
* 550MHz 3dB bandwidth
* 900V/µs slew rate
* 60mA maximum output current
* Single 5V or dual ±5V supplies
* Low power, 9.6mA per channel

EL5375 Applications

* such as receiving signals from twisted-pair lines or any application where common mode noise injection is likely to occur. The EL5175 and EL5375 are stable for a gain of one and requires two external resistors to set the voltage gain for each channel. The output common mode level is set by the refer

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL5375, EL5175. Please refer to the document for exact specifications by model.

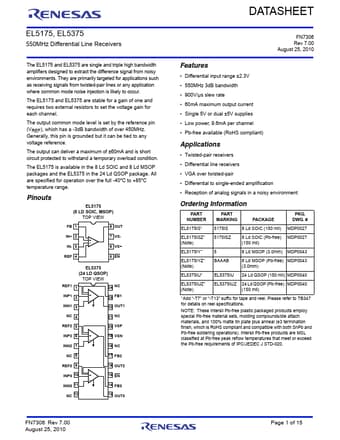

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL5375, EL5175
Manufacturer
Renesas ↗
File Size
872.36 KB
Datasheet
EL5175-Renesas.pdf
Description
550MHz Differential Line Receiver
Note
This datasheet PDF includes multiple part numbers: EL5375, EL5175.
Please refer to the document for exact specifications by model.
