EL7212 Dual Channel Power MOSFET Drivers

Test Conditions INPUT VIH IIH VIL IIL VHVS OUTPUT Logic “1” Input Voltage Logic “1” Input Current Logic “0” Input Voltage Logic “0” Input Current Input Hysteresis @V+ @0V ROH ROL IPK Pull-Up Resistance Pull-Down Resistance Peak Output Current IOUT = -100mA IOUT = +100mA Source Sink IDC POWE.

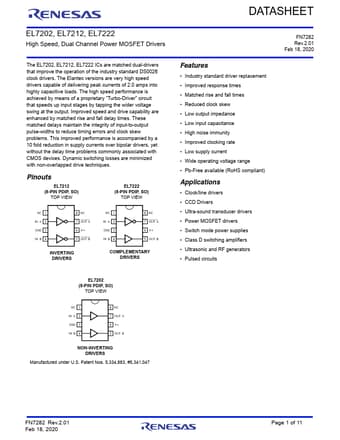

DATASHEET EL7202, EL7212, EL7222 High Speed, Dual Channel Power MOSFET Drivers The EL7202, EL7212, EL7222 ICs are matched dual-drivers that improve the operation of the industry standard DS0026 clock drivers. The Elantec versions are very high speed drivers capable of delivering peak currents of 2.0 amps into highly capacitive loads. The high speed performance is achieved by means of a proprietary “Turbo-Driver” circuit that speeds up input stages by tapping the wider voltage swing at the outp.

EL7212 Features

* Industry standard driver replacement

* Improved response times

* Matched rise and fall times

* Reduced clock skew

* Low output impedance

* Low input capacitance

* High noise immunity

* Improved clocking rate

* Low supply curre
