EL7243 - Dual Channel CCD Driver

Renesas

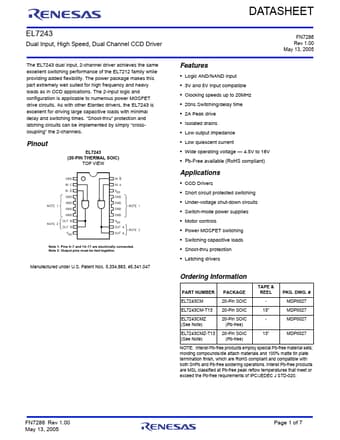

EL7243 Datasheet Preview — Preview of EL7243 PDF

Datasheet Details

Part number	EL7243
Manufacturer	Renesas ↗
File Size	468.76 KB
Description	Dual Channel CCD Driver
Datasheet	EL7243-Renesas.pdf

EL7243 Product details

Description

TEST CONDITIONS INPUT VIH IIH VIL IIL VHVS OUTPUT Logic “1” Input Voltage Logic “1” Input Current Logic “0” Input Voltage Logic “0” Input Current Input Hysteresis @VDD @0V ROH ROL IPK Pull-Up Resistance Pull-Down Resistance Peak Output Current IOUT = -100mA IOUT = +100mA Source Sink IDC Continuous Output Current POWER SUPPLY Source/Sink IS Power Supply Current VS Operating Voltage Inputs High MIN TYP MAX UNITS 2.4 0.1 10 0.8 0.1 10 0.3 V µA V µA V 36  46  2A 2 200 mA 1

Features

Logic AND/NAND input.
3V and 5V Input compatible.
Clocking speeds up to 20MHz.
20ns Switching/delay time.
2A Peak drive.
Isolated drains.
Low output impedance.
Low quiescent current.
Wide operating voltage.
4.5V to 16V.
Pb-Free available (RoHS compliant).
