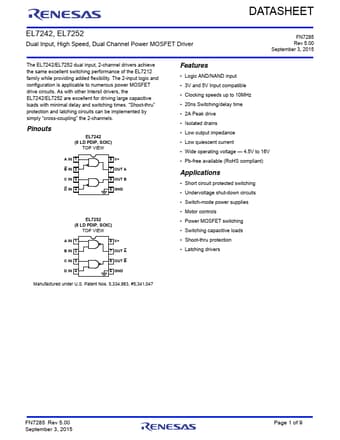

EL7242 Datasheet, Driver, Renesas

EL7242 Features

• Driver
• Logic AND/NAND input
• 3V and 5V Input compatible
• Clocking speeds up to 10MHz
• 20ns Switching/delay time
• 2A Peak drive
• Isolated

PDF File Details

Part number:

EL7242

Manufacturer:

Renesas ↗

File Size:

517.24kb

Download:

📄 Datasheet

Description:

Dual channel power mosfet driver. TEST CONDITIONS INPUT VIH IIH VIL IIL VHVS OUTPUT Logic “1' Input Voltage Logic “1' Input Current Logic “0' Input Voltage Logic “

EL7242 Application

• Applications
• Short circuit protected switching
• Undervoltage shut-down circuits
• Switch-mode power supplies
• Mo
